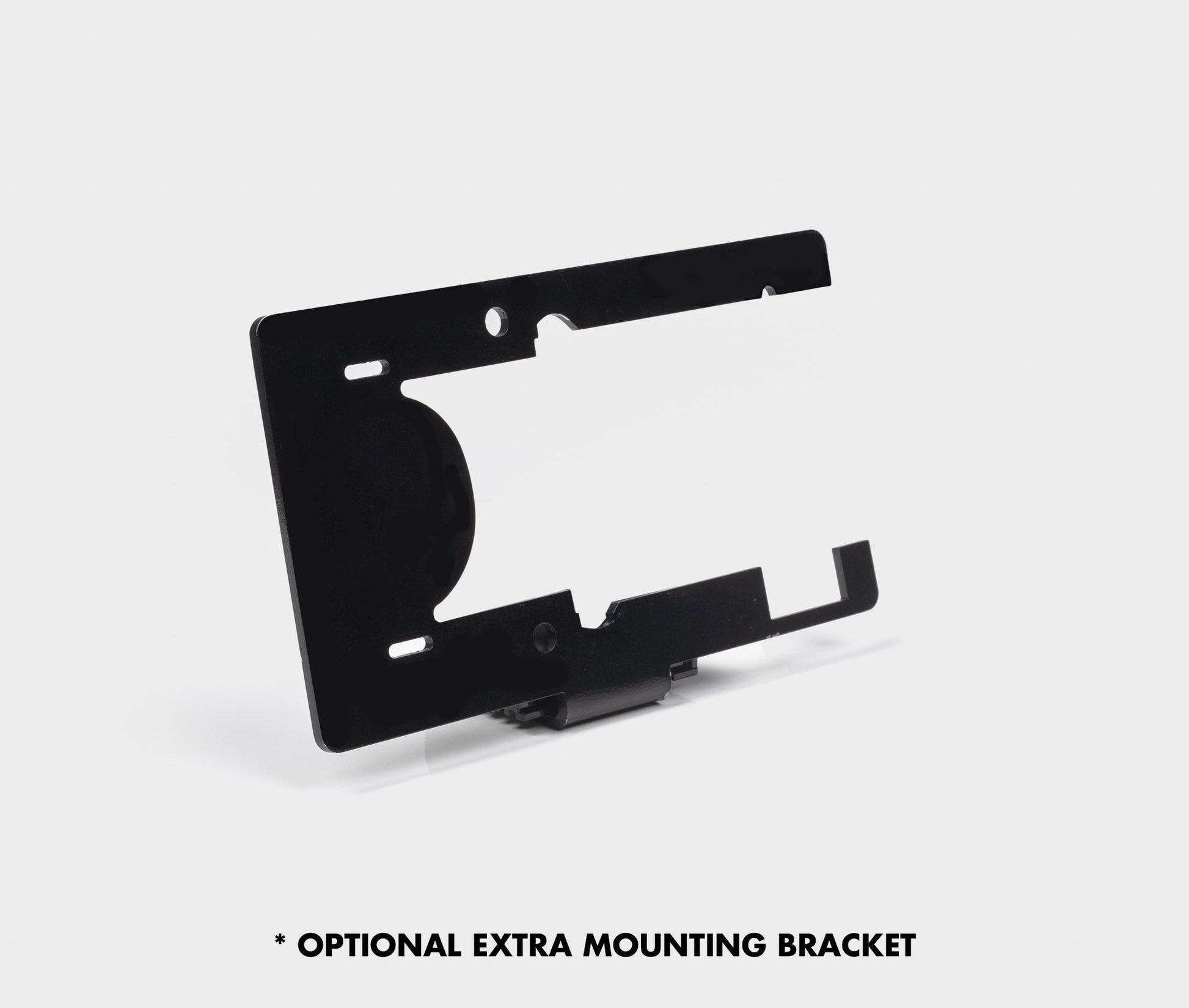

Order a display too and get $100 off your mount.

Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle
Powertune Digital STANDALONE Dash Display V5 Bundle

Powertune Digital STANDALONE Dash Display V5 Bundle

Regular price
$1,199.00 AUD
Sale price
$1,199.00 AUD
Tax included. Shipping calculated at checkout.

Bundle includes:

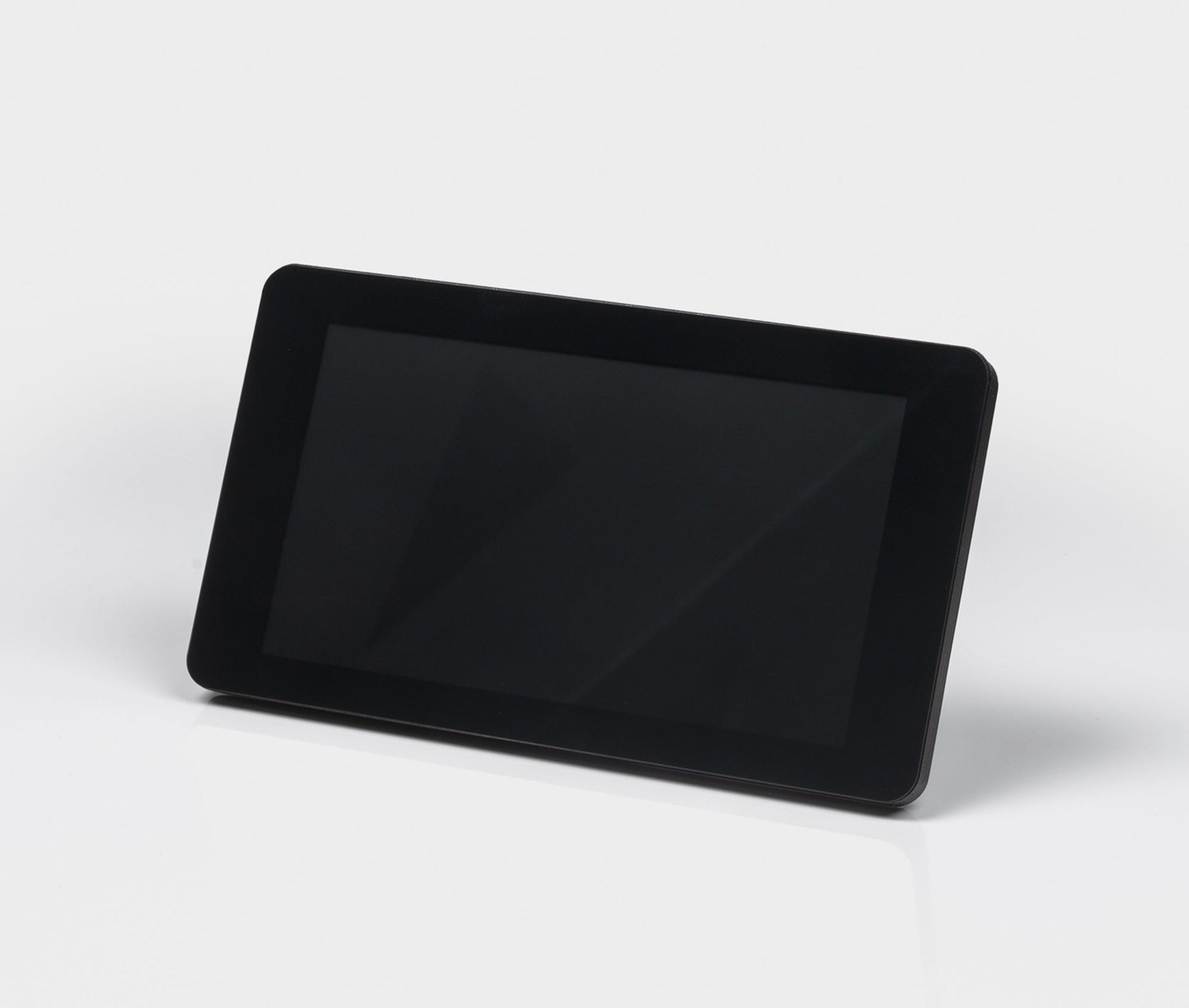

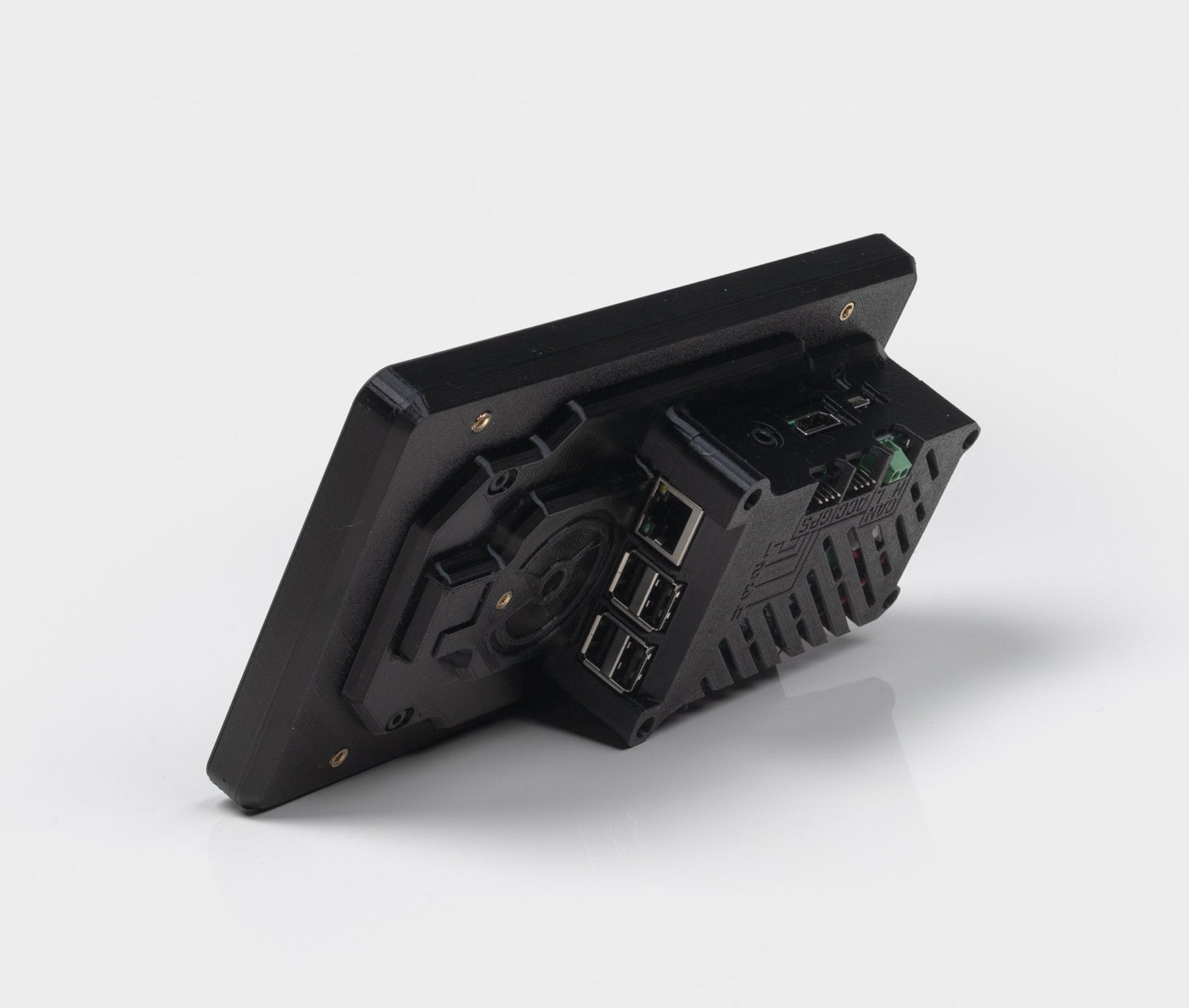

1 x Powertune Digital Dash

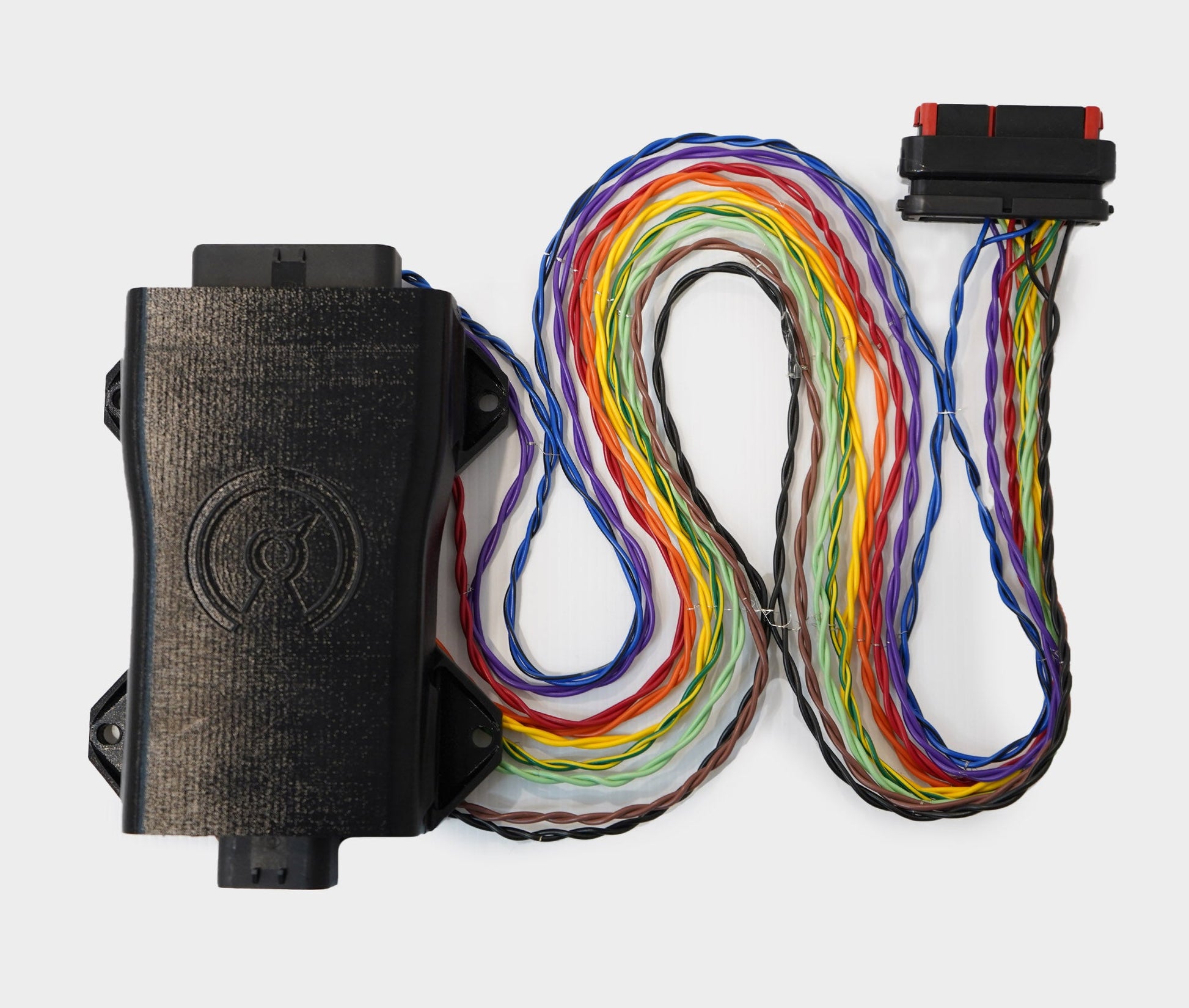

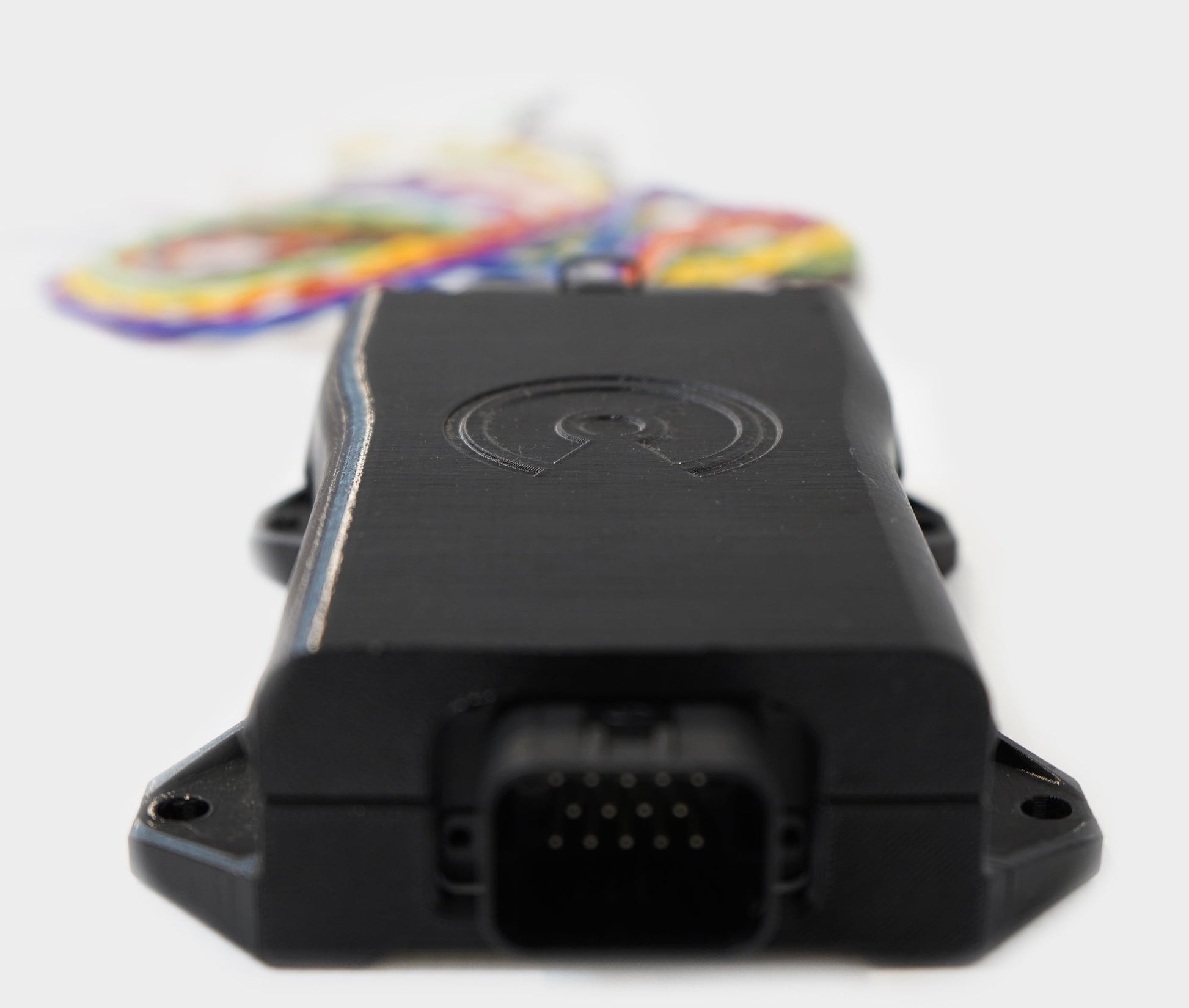

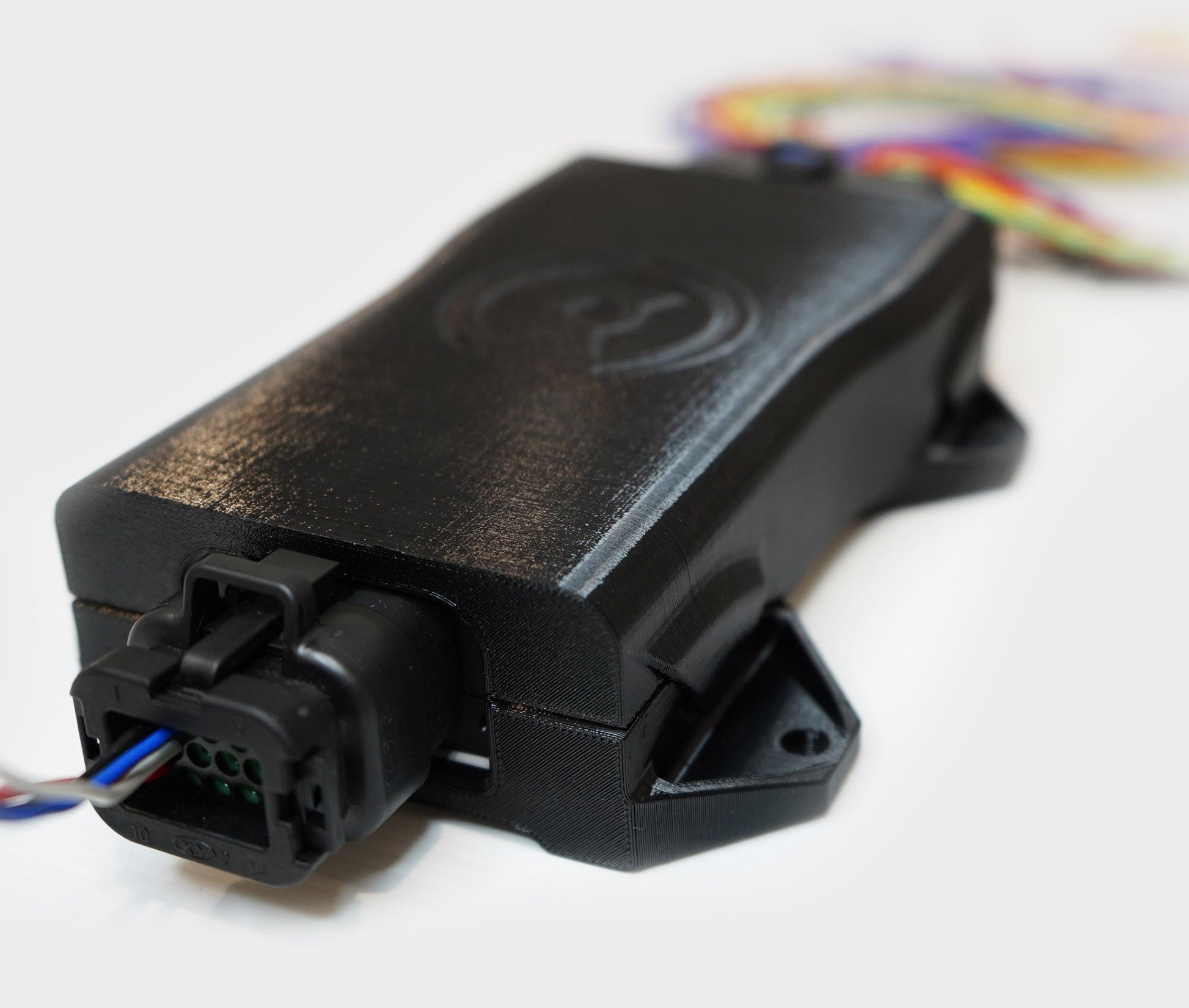

1 x Powertune Digital CAN EXTENDER

The Powertune Digital Standalone dash is capable of receiving up to 16 channels from analogue and digital input sources via the CAN extender, from external sensors such as fuel level, temperatures/pressure to indicators and lights, wire your desired items to the extender which then broadcasts the live data to your dash. No factory OR standalone ECU required!

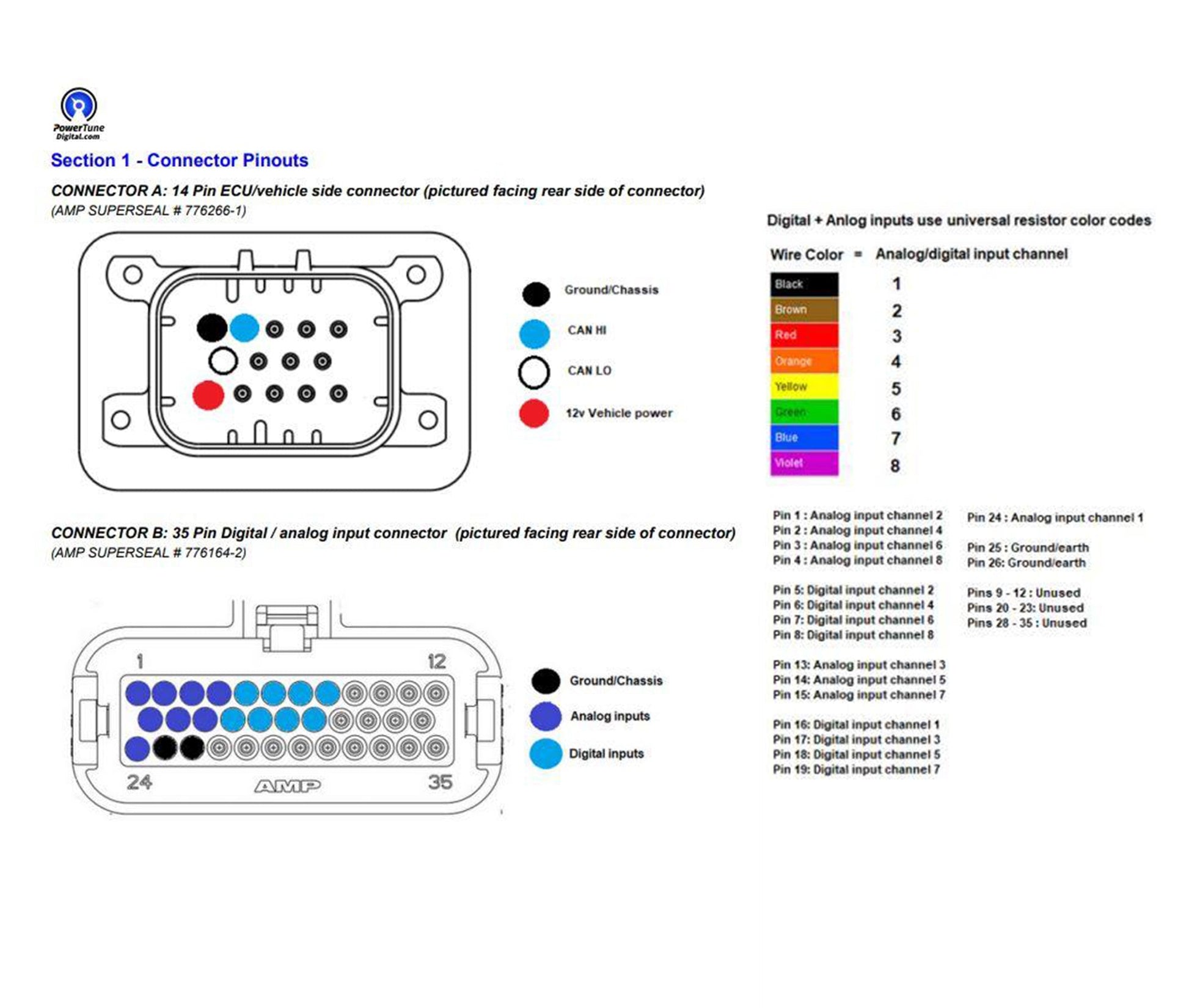

  • Provides up to 8 analogue (voltage OR resistance based) and 8 digital inputs which can be broadcast via CAN to receiving dash/device.
  • Compatible with aftermarket or factory sensors!
  • Works standalone, does not require an aftermarket or Factory ECU. Can also work alongside either a factory or aftermarket ECU already installed!
  • Adjustable CAN speeds and CAN IDs
  • Onboard 5V power supply to power external sensors
  • Lead time: 7-14 days

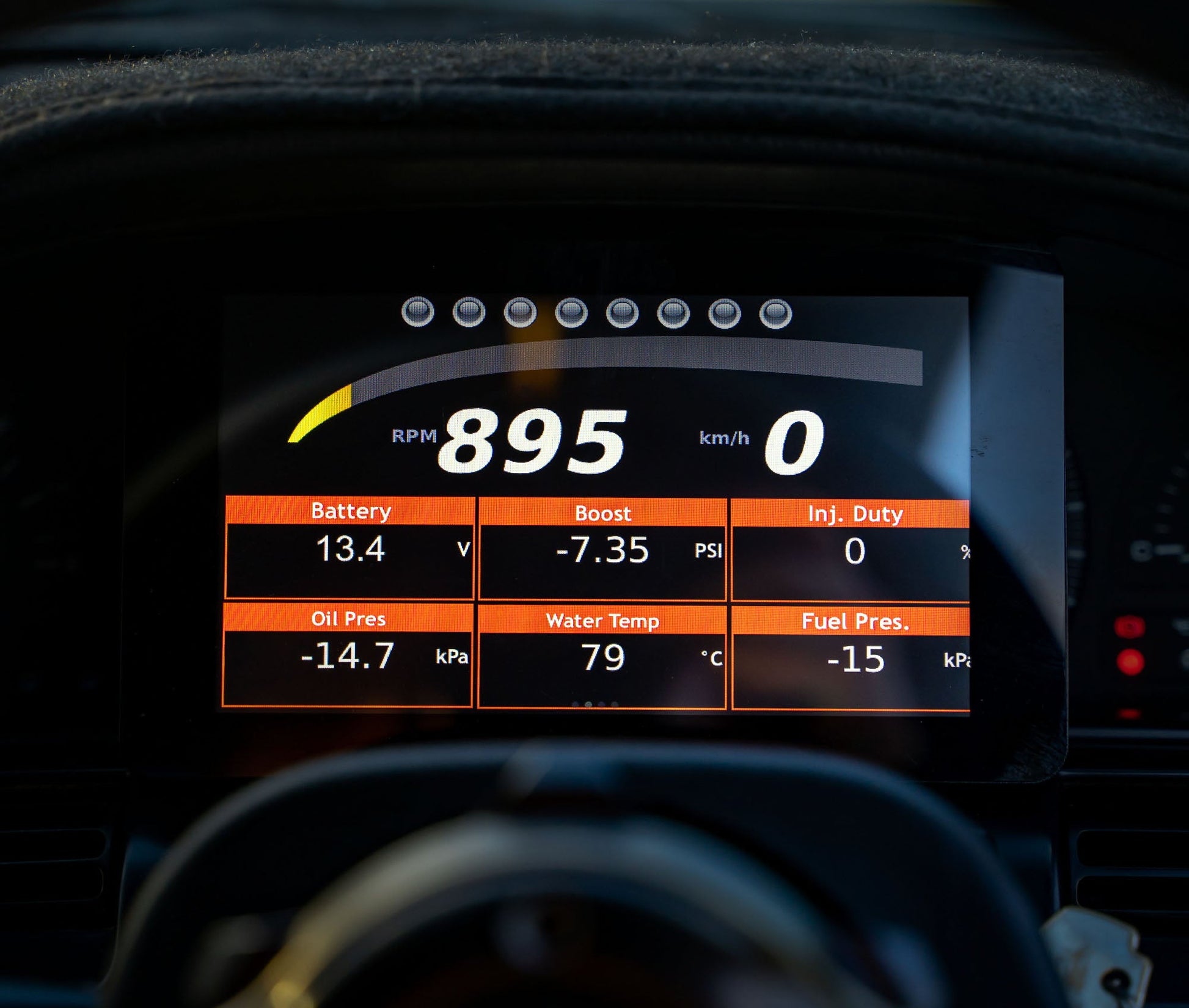

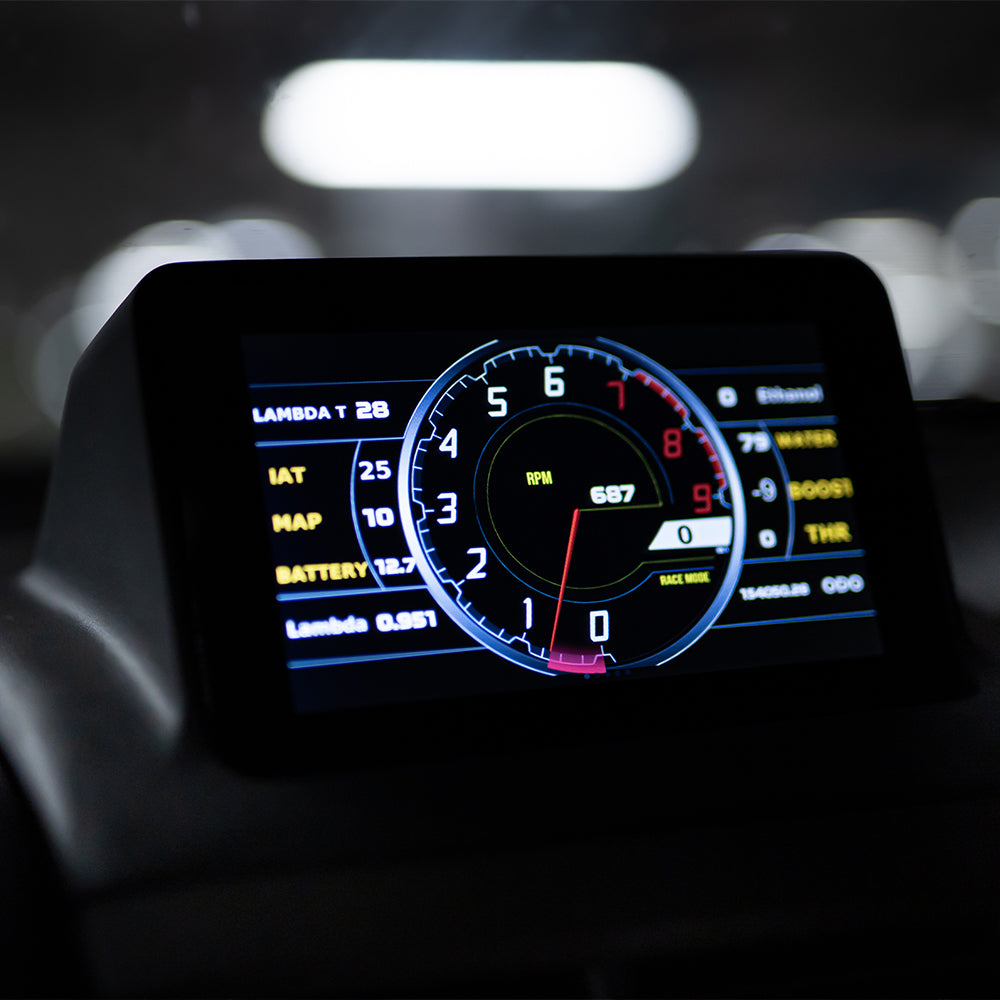

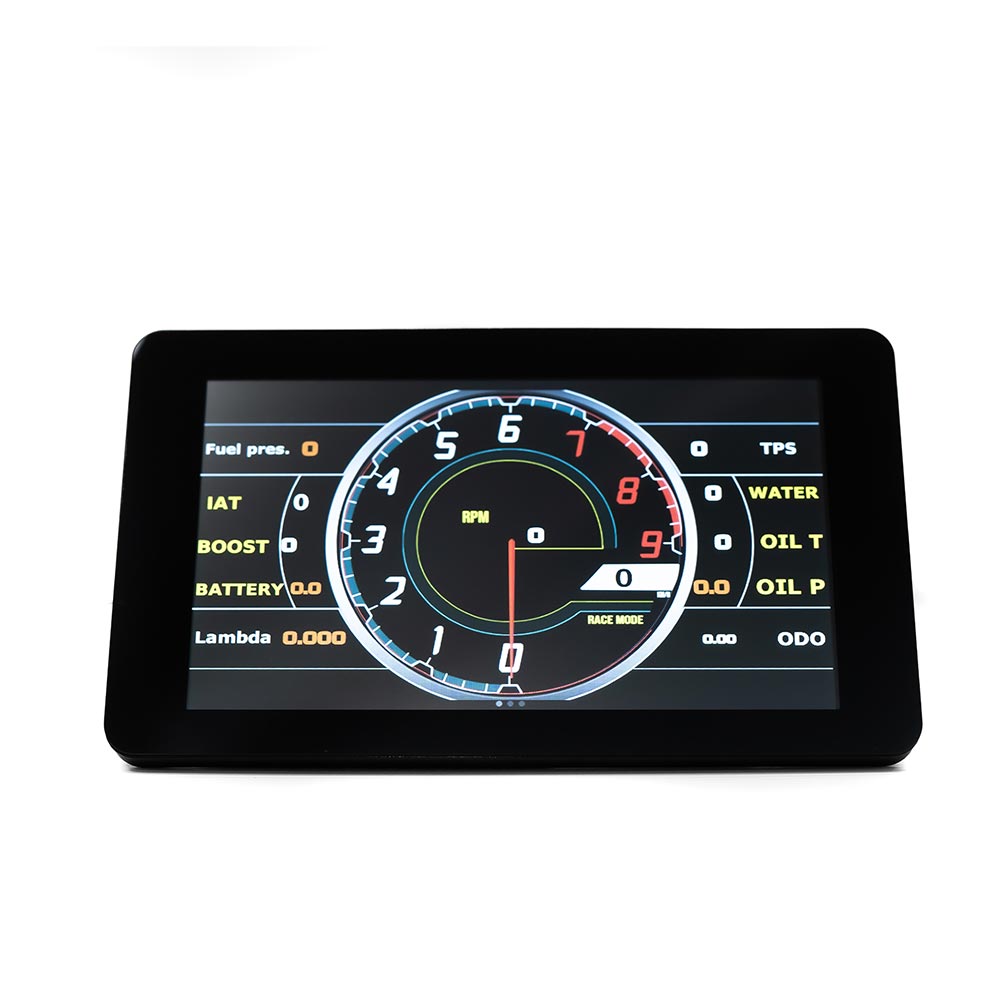

The ultimate digital dash for your car!

  • Customize to your desired sensor outputs, display themes, preferred RPM and shift light settings
  • Set visual and audio warnings for temperature readings and sensor states
  • Make adjustments for speed corrections (changed wheel size, inaccurate mechanical gauges)

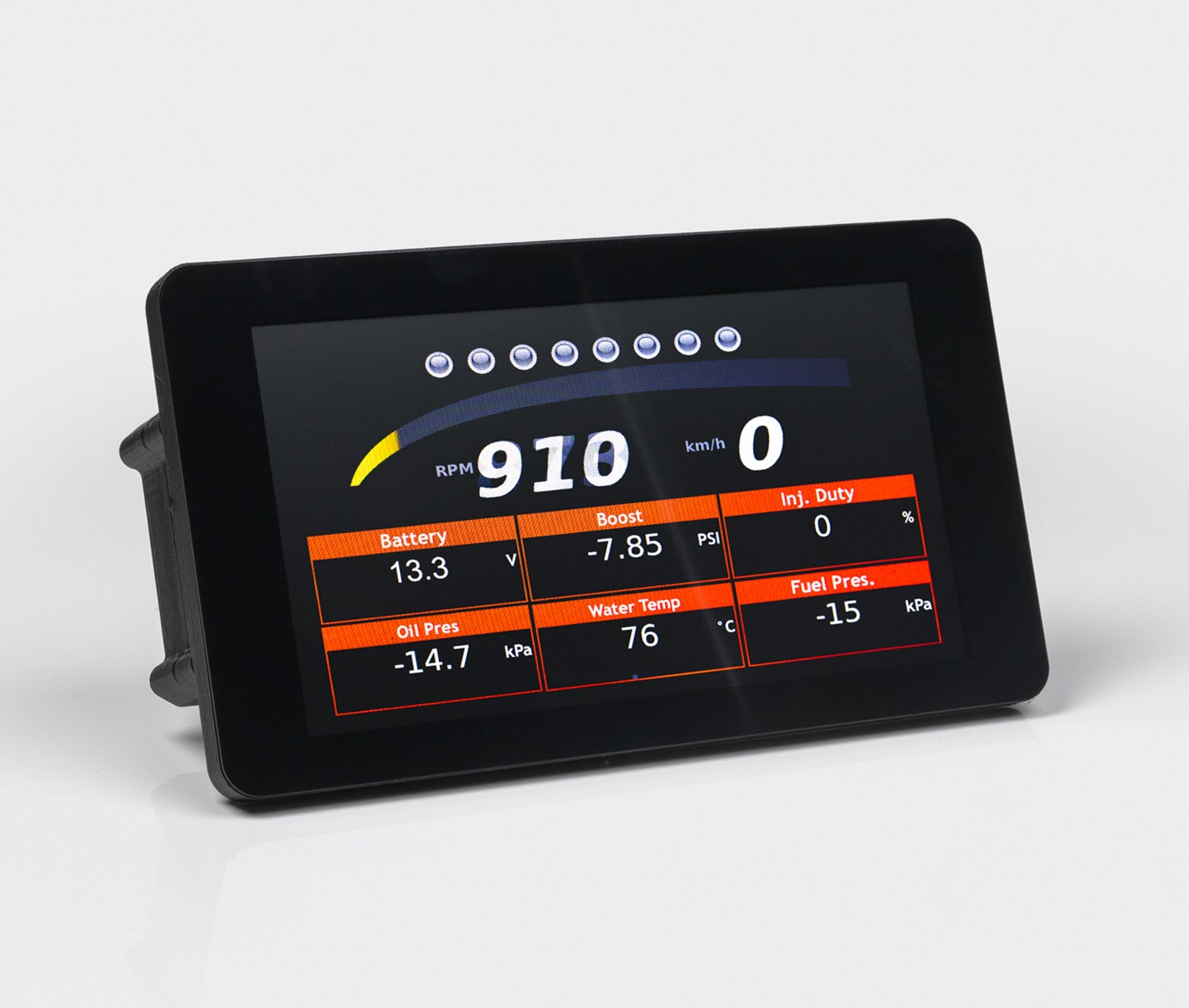

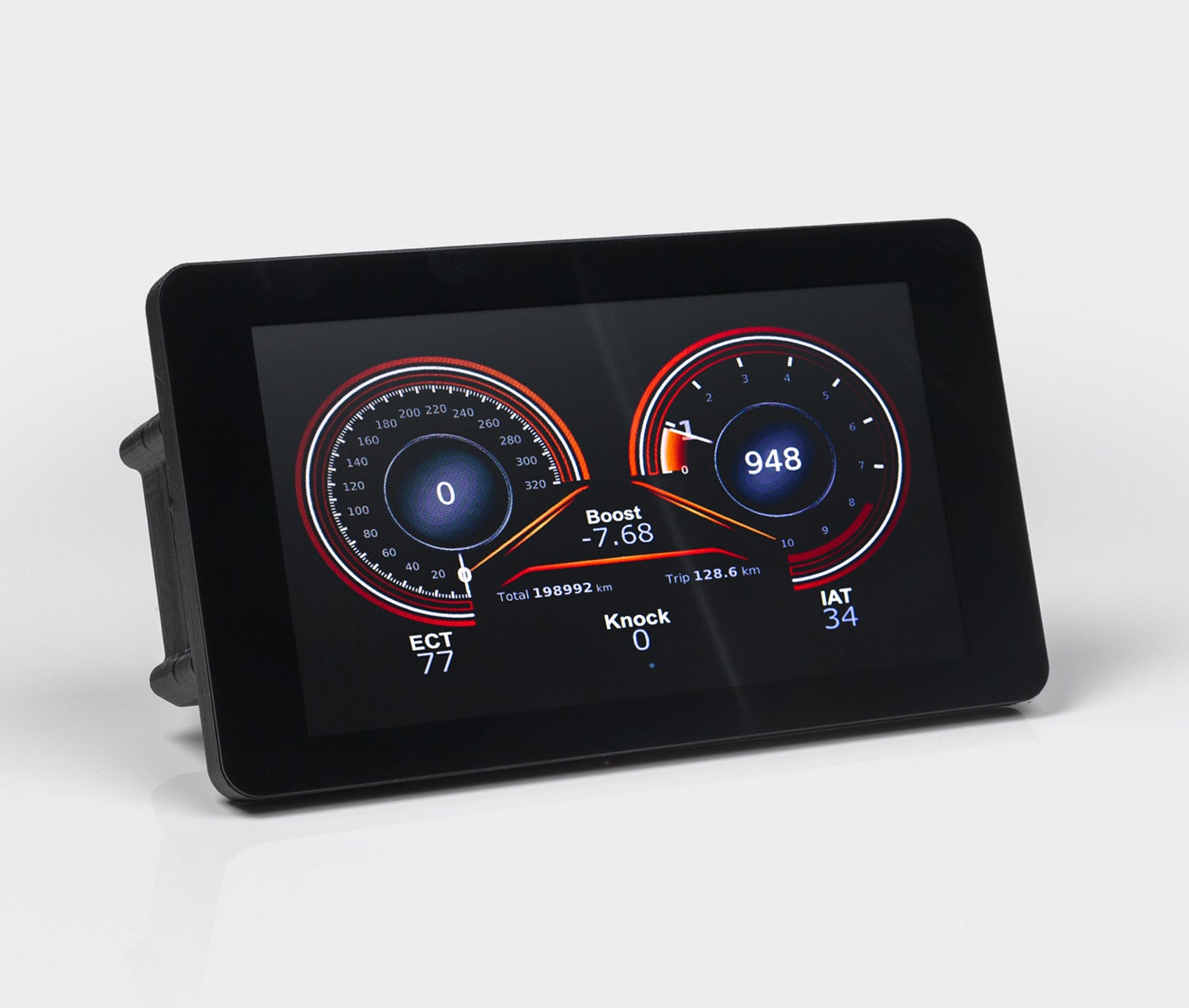

  • 7" LCD display (still completely visible with direct sunlight)
  • Virtual drag/quarter mile timer

Includes the following:

  • PowerTune Digital software and ECU communication protocols
  • PowerTune Digital dash
  • 1-3 metre 12V to 5V 3amp vehicle wire-in power supply
  • Interface adapter to plug directly to your ECU (Excludes Apexi Power FC, requires FC Hako/Datalogit cable)
  • 12 month hardware warranty

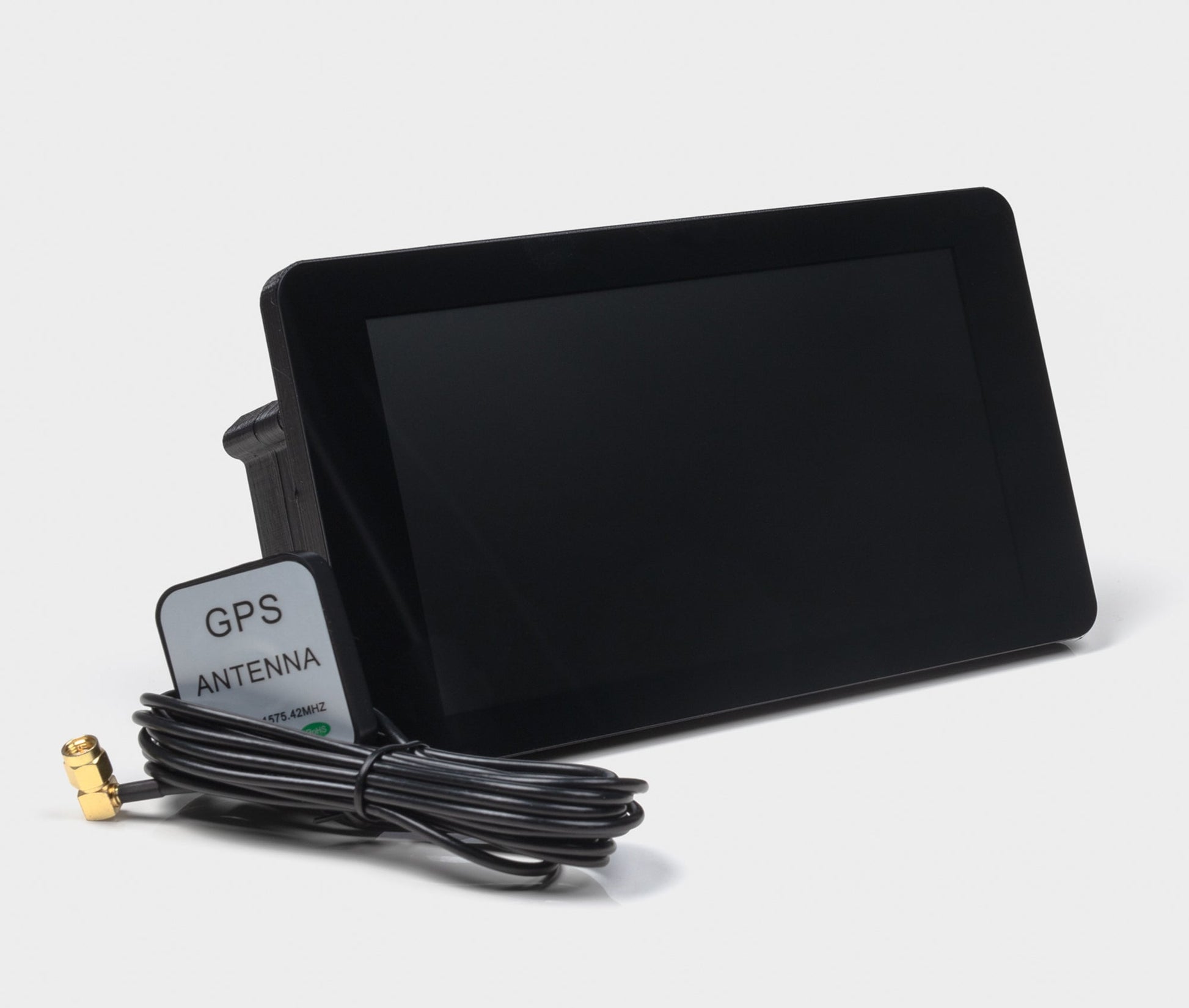

GPS Add On Features:

  • Lap Timer - able to be integrated with local racetracks
  • Ability to read speed - perfect for gearbox conversions without a working speedometer
  • Smooth speed readings with 10 updates per second



 More info about the dash



Documentation:

Digital dash quick start guide with GPS pinning can be viewed here

Digital dash full user manual can be downloaded here

CAN Extender user manual here

CANSHIFT user manual here

Facebook - PowerTune Digital Owners Group: Join here

Link ECU Analogue input setup guide here



Video Tutorials:

Guide 1 - Powertune Digital dash vehicle installation (COMING SOON!)

Guide 2 - Powertune Digital dash first time setup/first use video here

Guide 3 - Customising dash layouts here (watch guide 2 first!)

Guide 4 - How to create tracks for the laptimer here
