Haltech Nexus R3 VCU + Universal Wire-in Harness Kit 2.5m (8') - HT-193200

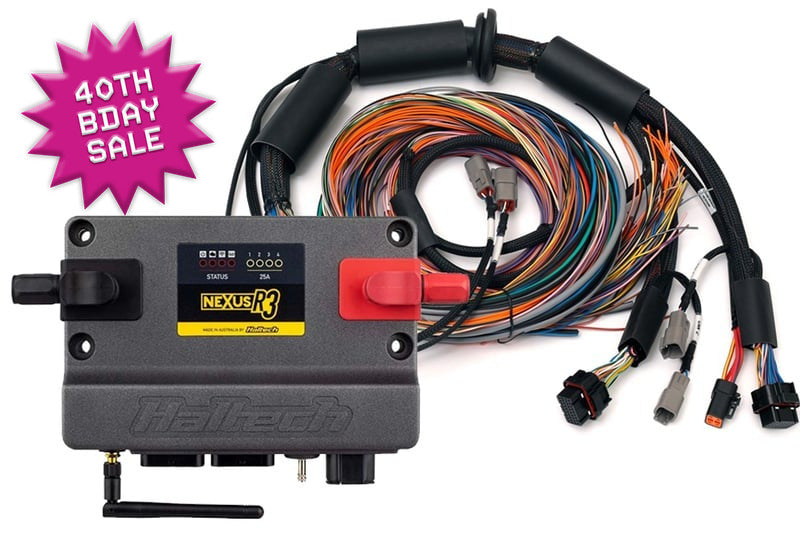

A complete Nexus R3 starting point: the VCU plus a 2.5 m (8 ft) universal wire-in engine harness.

The Haltech Nexus R3 is a Vehicle Control Unit (VCU) that combines a full engine management system, a power distribution module (PDM), a data logger and a wideband controller in one compact unit. It suits engines up to 8 cylinders or 4 rotors, and is aimed at race cars that need advanced race features, data logging and power management without a box of separate modules.

About the universal wire-in harness

Made for dedicated race cars, engine swaps and custom wiring jobs. One end carries the Haltech connectors and the other is left unterminated, so every circuit can be run exactly where your build needs it. All wires are colour coded and labelled to match Haltech's wiring diagram for a straightforward, confusion-free install. Plug it in, wire up the engine following the diagram, load a base map and start tuning. The manual and software come with the VCU and are also available to download from Haltech.

Hardware highlights

• 8 peak and hold injector outputs and 8 ignition outputs (both usable as low-side drives)
• Built-in PDM with 4 x 25 A push-pull outputs (PWM up to 5 kHz) to power injectors, coils, fans, fuel pumps and transbrakes directly
• 6 x 8 A half-bridge outputs for drive-by-wire throttle and other H-bridge loads
• 6 PWM-capable low-side outputs
• 11 x 0-5 V analog inputs with switchable pull-ups and redundancy for electronic throttle
• 6 synchronised pulsed inputs for cam, speed and frequency sensors
• Differential trigger and home inputs with adjustable thresholds and glitch filtering
• Onboard wideband controller supporting NTK and Bosch LSU 4.9 sensors
• Internal 4 bar MAP sensor
• 2 CAN buses with switchable termination
• 128 MB onboard logging: up to 300 channels at up to 1 kHz
• Onboard Wi-Fi, USB-C connection and built-in G-sensor, compatible with the Haltech Connect app

Tuning and race features

• Long-term fuel learning (up to 4D) and closed-loop O2 control
• 4D closed-loop boost control and closed-loop CO2 boost control
• Launch control, traction control and advanced torque management (driveshaft and engine RPM targeting)
• Anti-lag, rolling anti-lag and rotational idle
• Dual knock control and multi-level engine protection
• Flat shift, transbrake control and race timer
• Up to 6-stage nitrous control
• Variable cam control for up to 4 cams
• Flex fuel, multi-stage injection, intake air bleed and stepper motor idle control
• Shock travel and ride height logging
• Automatic transmission control for Ford AODE/4R70W, GM 4L60E and 4L80E, Toyota A340E, Lenco and Liberty
• Set up with Haltech's Nexus Software Programmer (NSP)

Key specifications

What's in the box

• Nexus R3 VCU
• SurLok power connectors (red and black)
• Wi-Fi antenna
• Mounting bolts
• USB-C cable and USB-C dust cap
• Nexus R3 universal wire-in engine harness, 2.5 m (8 ft)
