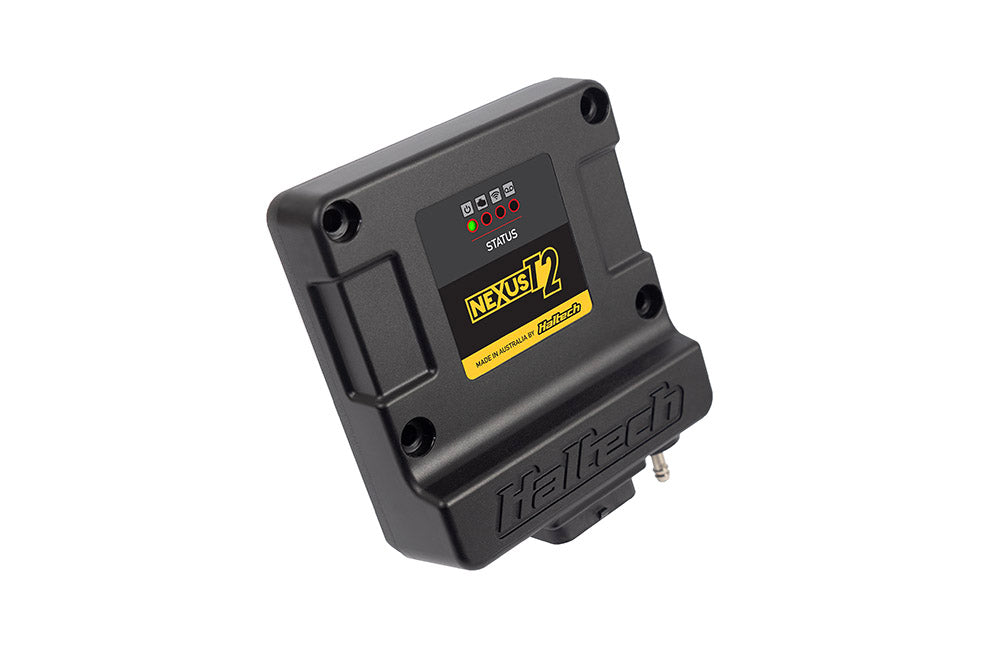

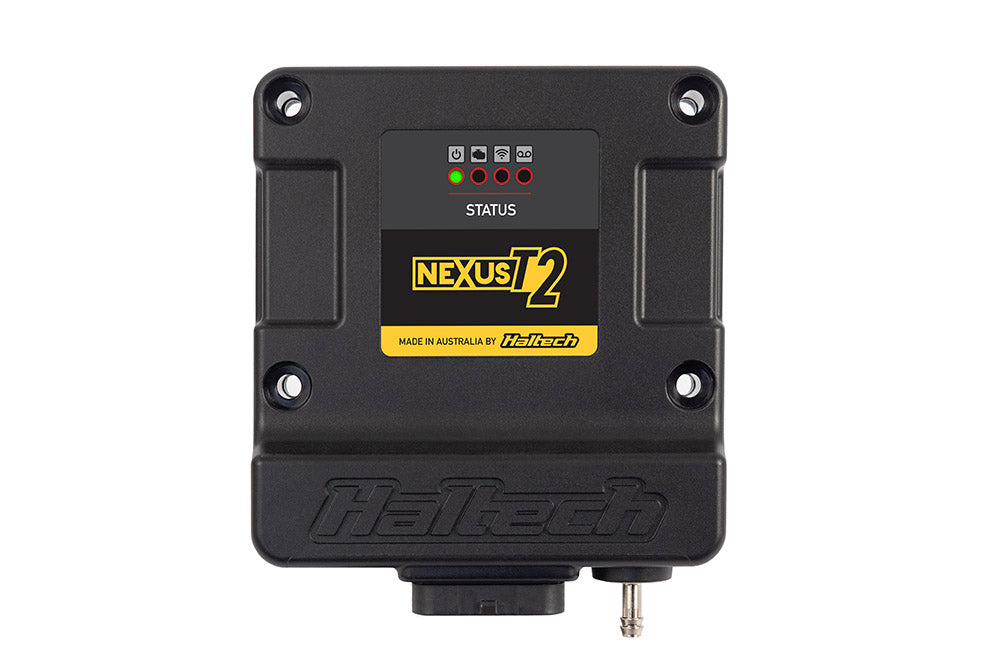

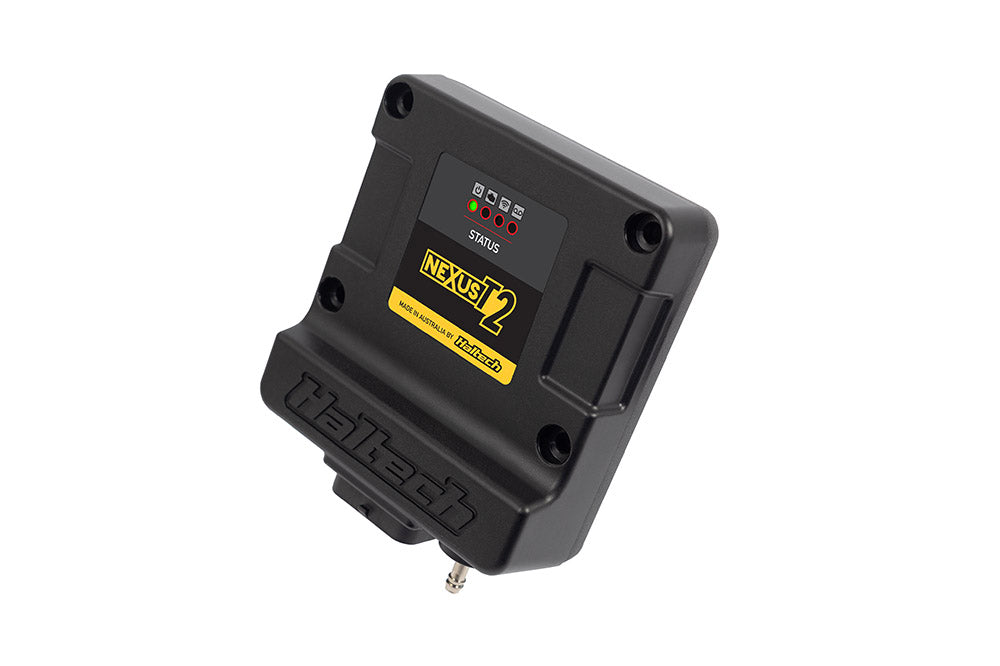

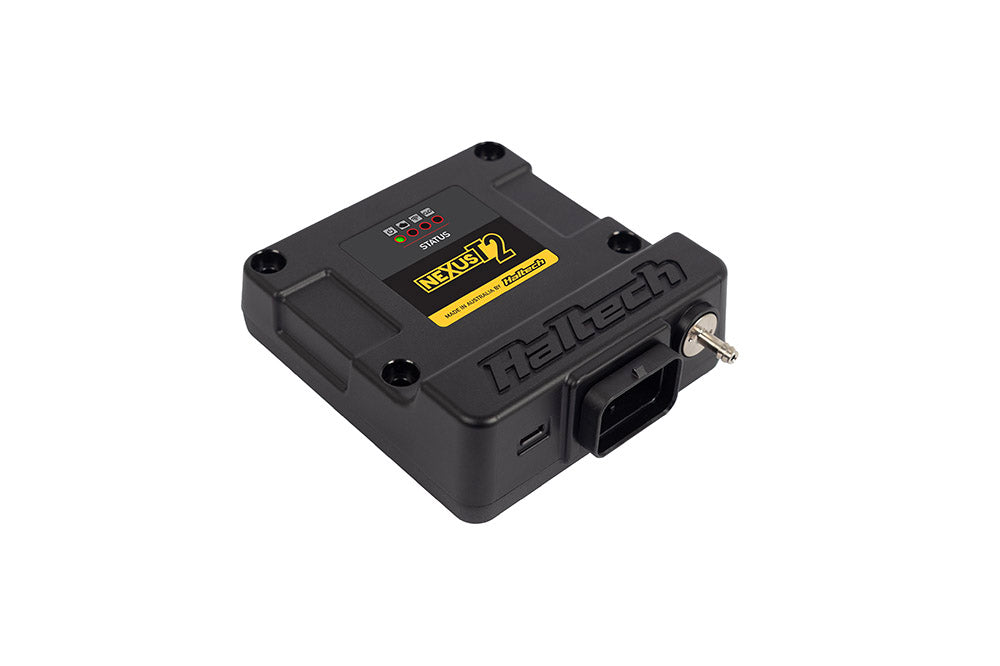

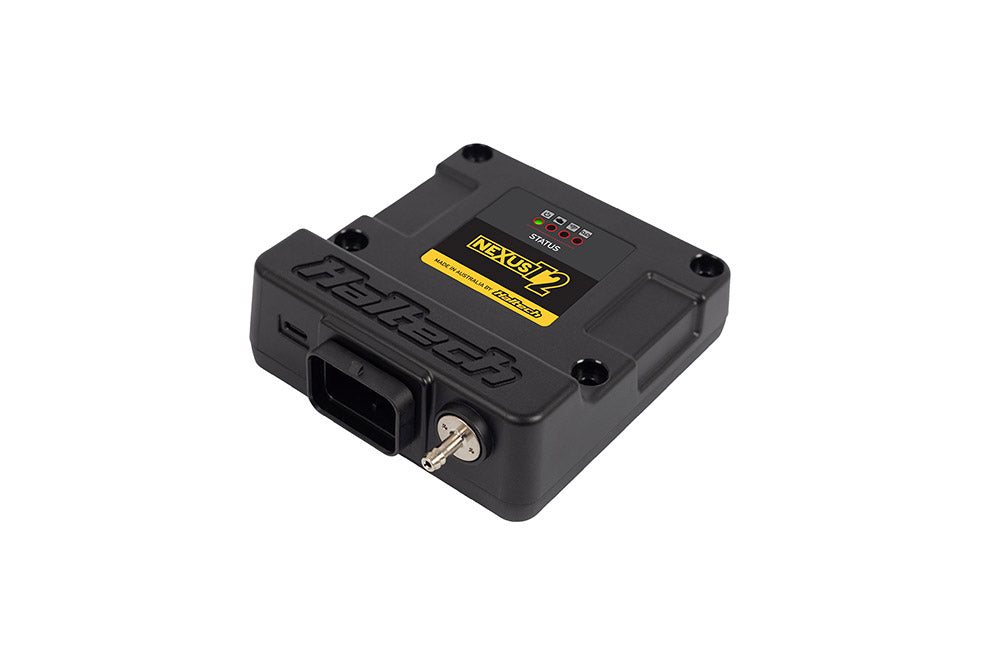

Haltech Nexus T2 ECU - HT-211000

The Haltech Nexus T2 is a compact, standalone ECU and the successor to the Elite 750. It's Haltech's entry point into the Nexus range, built for street performance builds and EFI conversions on engines up to 6 cylinders or 3 rotors, naturally aspirated or boosted. You get full control of fuel, ignition and boost in a sealed, waterproof case with a single connector, and the ECU comes fully enabled with no extra charges to unlock advanced features.

Hardware highlights

• 6 injector outputs (peak and hold, 8 A peak / 2 A hold) and 6 ignition outputs

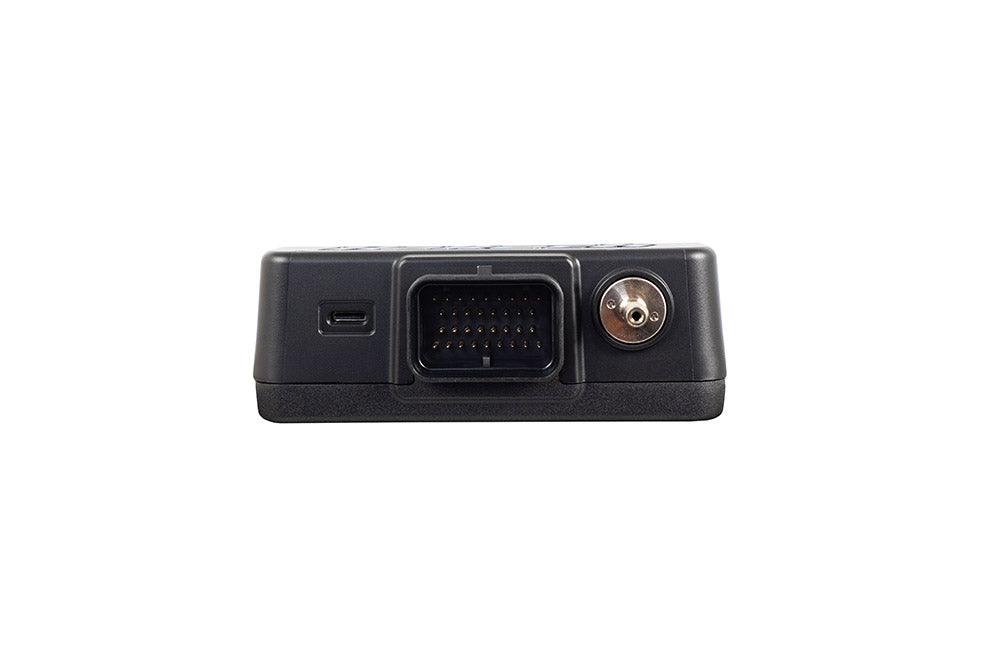

• IP66 waterproof, environmentally sealed case with a single 34-pin Superseal connector
• Internal 4 bar MAP sensor
• Differential trigger and home inputs, plus 2 synchronised pulsed inputs (one shared with the knock input)
• 1 knock input, 5 analog voltage inputs and 5 digital pulsed outputs
• Load sensing by MAP, throttle position or MAF
• Sequential, semi-sequential, batch or multipoint injection
• Direct fire multi-coil, distributor or Haltech CDI ignition
• Onboard logging (up to 300 channels at up to 1 kHz) or log straight to your laptop
• Built-in 4-channel oscilloscope for diagnosing trigger and sensor signals
• USB-C laptop connection and Wi-Fi via an internal antenna
• CAN connection for Haltech dashes, displays and expansion devices, or OBDII

Tuning features

• Tuned with Haltech's Nexus Software Programmer (NSP)
• 4D tuning tables up to 32 x 32 x 8, plus 3D per-cylinder corrections
• Tune against manifold pressure, throttle, cam position, ethanol content, gear, road speed, race time, EGT, shock travel or any other channel
• Closed-loop O2 control with long-term learning (with an optional CAN wideband controller)
• Closed-loop boost control with learning and 6 user-definable correction modes, e.g. boost by gear or road speed
• Flex fuel via a direct sensor input
• Launch control, traction control, anti-lag and rolling anti-lag
• Up to 6-stage nitrous control, flat shift, transbrake and race timer
• Closed-loop idle speed control
• Variable cam control for up to 2 camshafts
• Programmable peak and hold currents for low-impedance injectors
• 2 injection stages for rotary engines
• Expand with up to 3 wideband channels and up to 12 EGT channels via CAN

Key specifications

What's in the box

• Nexus T2 ECU
• USB-C cable and USB-C dust cap
• Mounting bolt set
• Haltech fabric keytag
• Quick start guide
• Universal wiring diagram
