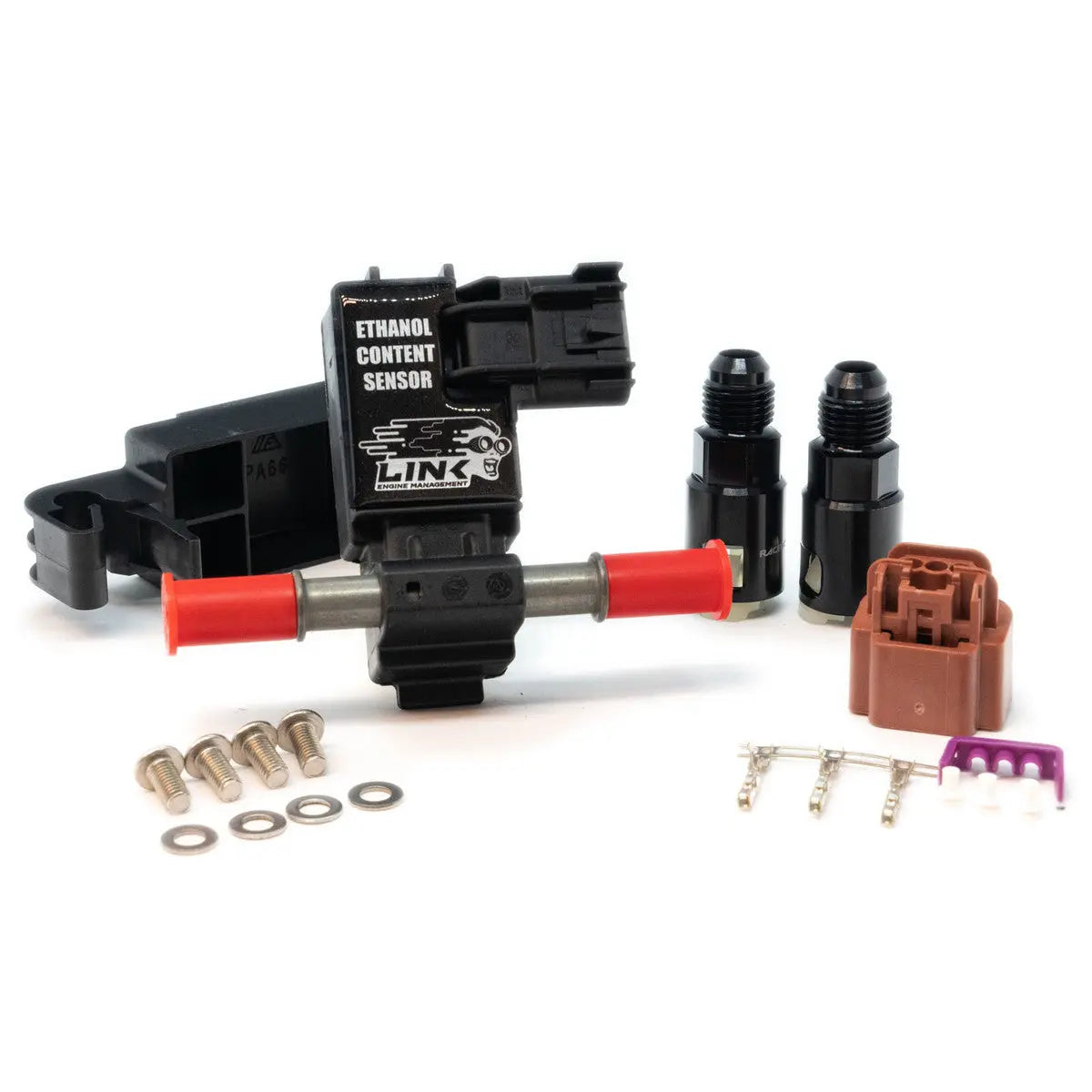

Link ECU - Ethanol Content Sensor
Looking to run flex-fuel? Then the Ethanol Content Sensor is a must have. The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex fuel vehicle. This sensor also measures fuel temperature.
Compatible with all current Link Wire-In and Plug-In ECU’s. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.
- AN-6 Fittings.
- Includes plug and pin kit.
Technical Specs:
- The pinout is indicated on the sensor itself (from left to right looking into the connector on the sensor) as:
- Vcc (+12V supply).
- GND (ground).
- Vout (digital signal out).
